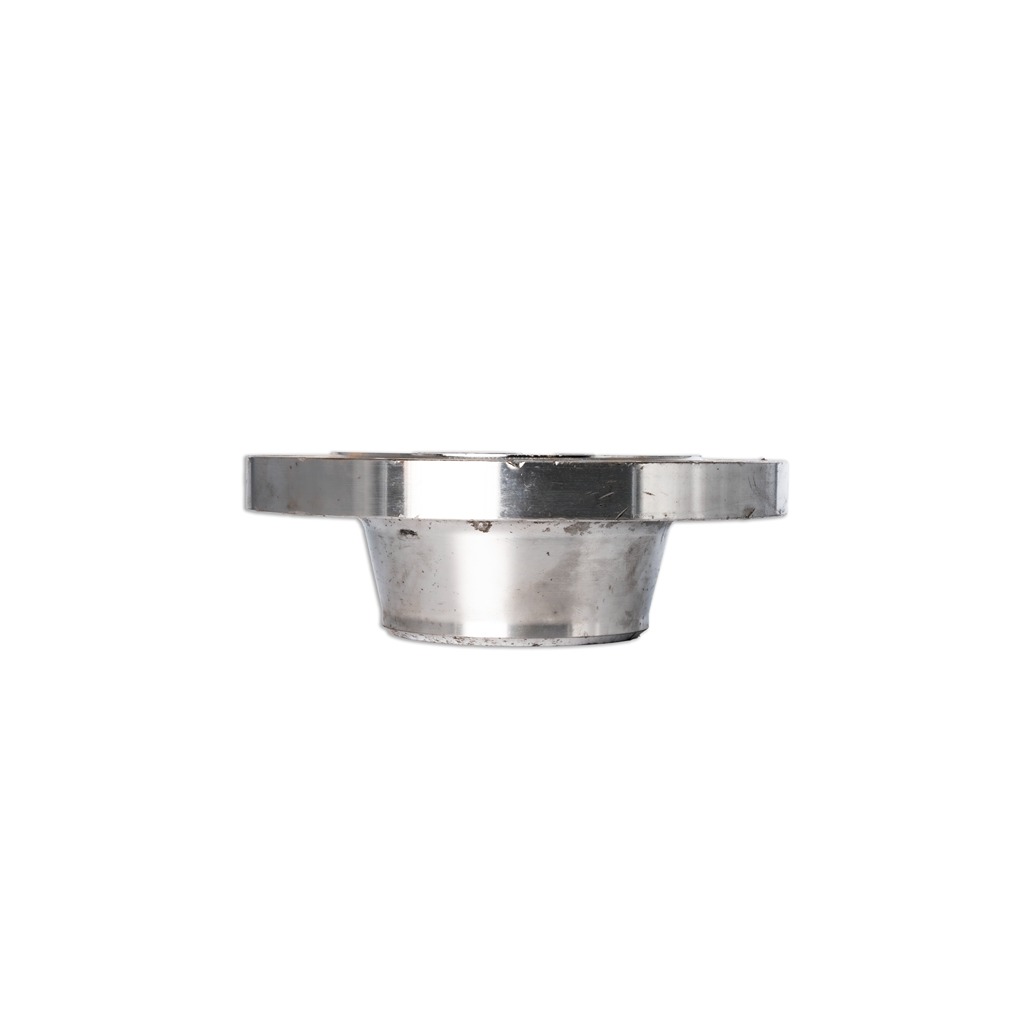

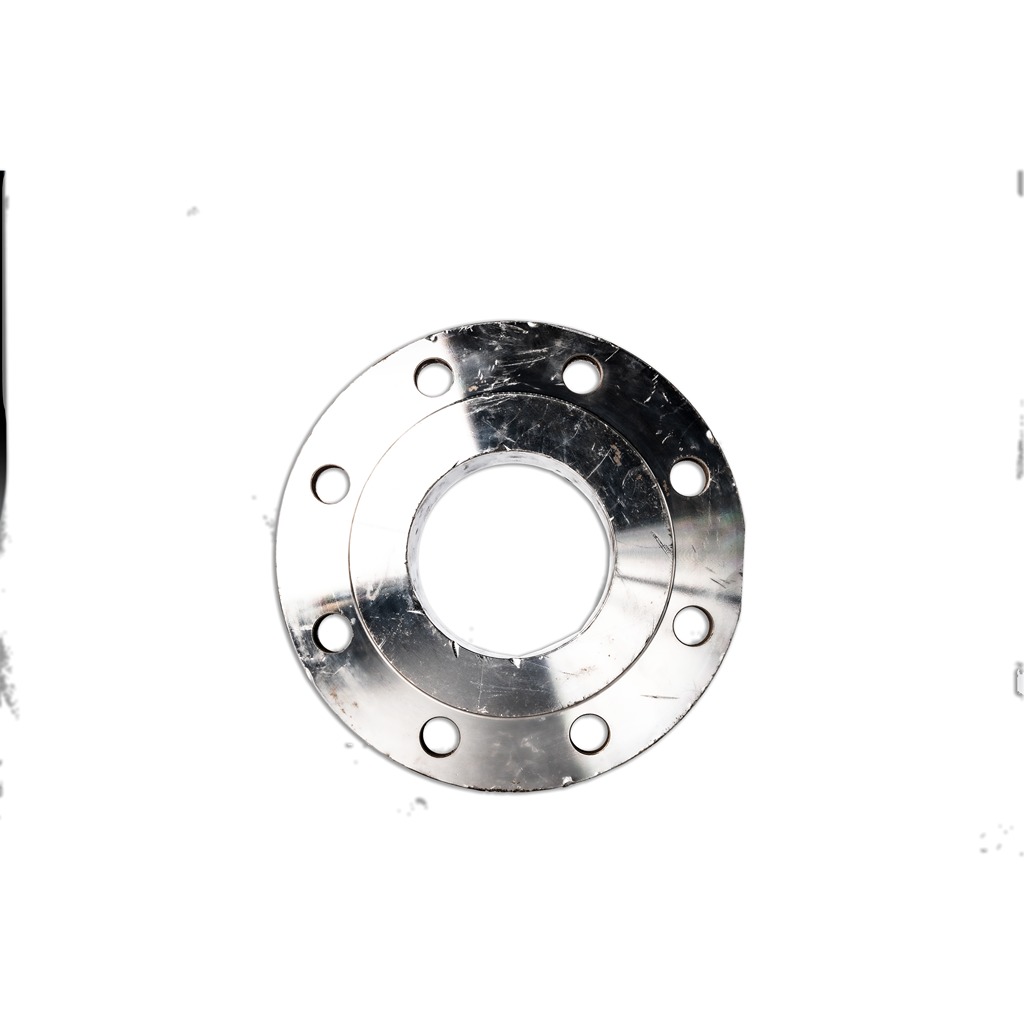

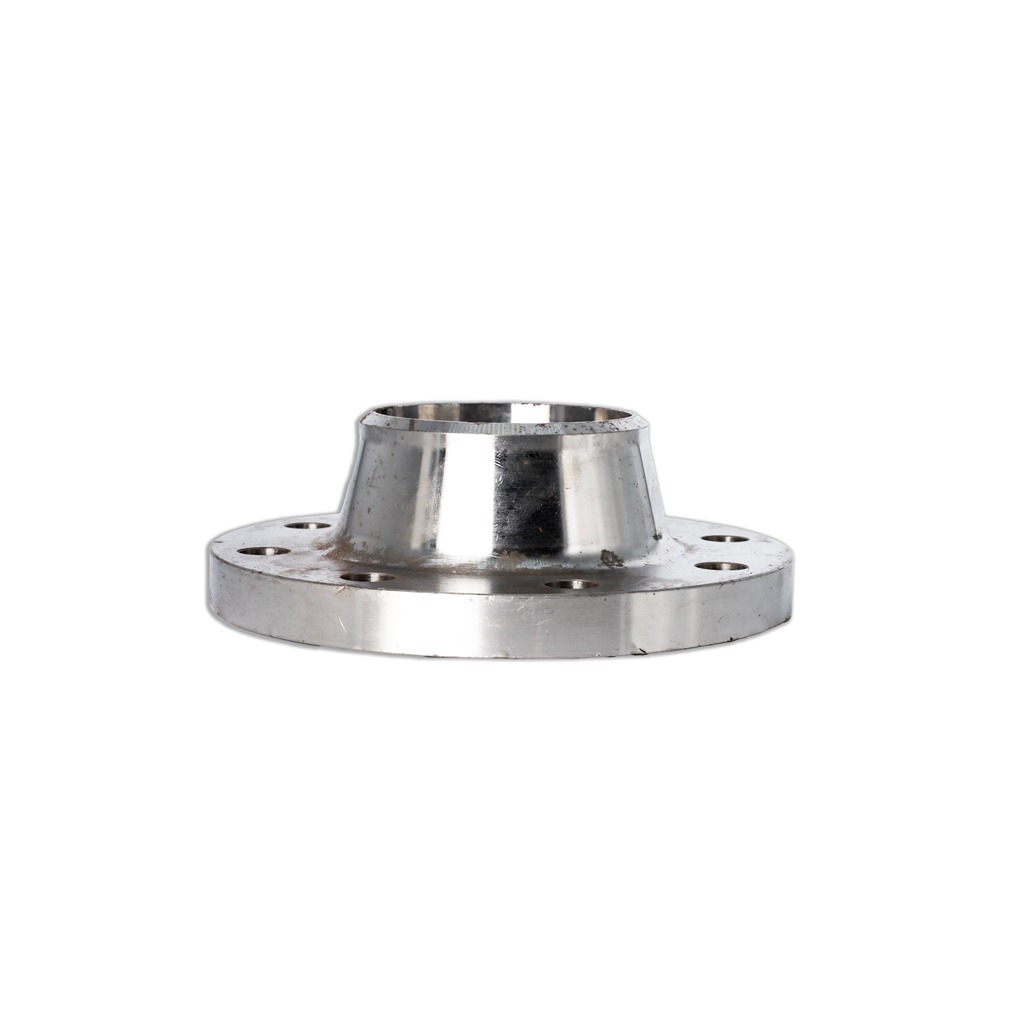

WELD NECK RAISE FLANGE

Industrial Pipe Fittings

Coating: G.I/RAW/WARNISH

Available Size: 1/2" - 14"

🔎 What It Is:

A Weld Neck Raised Flange is a type of flange designed to be welded to the pipe’s neck (or pipe end) by butt welding. It features a raised face around the flange bore to improve the seal when connected to another flange with a gasket. This design provides high strength and is suitable for high-pressure and high-temperature applications.

Enquiry For This Product

Specifications:

• Type

  Weld Neck Raised Flange

• Material

  Carbon Steel (ASTM A105, A234 WPB)

• Material

  Stainless Steel (ASTM A182 WP304, WP316)

• Material

  Alloy Steel (ASTM A182 F11, F22)

• Material

  Mild Steel (IS 2062)

• Size Range

  ½” to 48” (DN15 to DN1200)

• Pressure Ratings

  ANSI Class 150, 300, 600, 900, 1500, 2500

• Face Type

  Raised Face (RF)

• Connection Type

  Buttweld (weld neck)

• Standards

  ASME B16.5, ASME B16.47, IS 6392

• Dimensions

  As per ASME B16.5 or IS standards

• Surface Finish

  Smooth machined raised face, painted or galvanized coating

Features:

• High-strength flange due to the welded neck design
• Raised face ensures better gasket sealing and prevents leaks
• Suitable for high pressure, temperature, and corrosive environments
• Good resistance to mechanical stress and bending moments
• Allows smooth flow transition, reducing turbulence and erosion

Applications:

• Oil and gas pipelines
• Petrochemical and chemical processing plants
• Power generation and boiler systems
• Water treatment plants
• HVAC and fire protection systems
• Shipbuilding and offshore platforms
