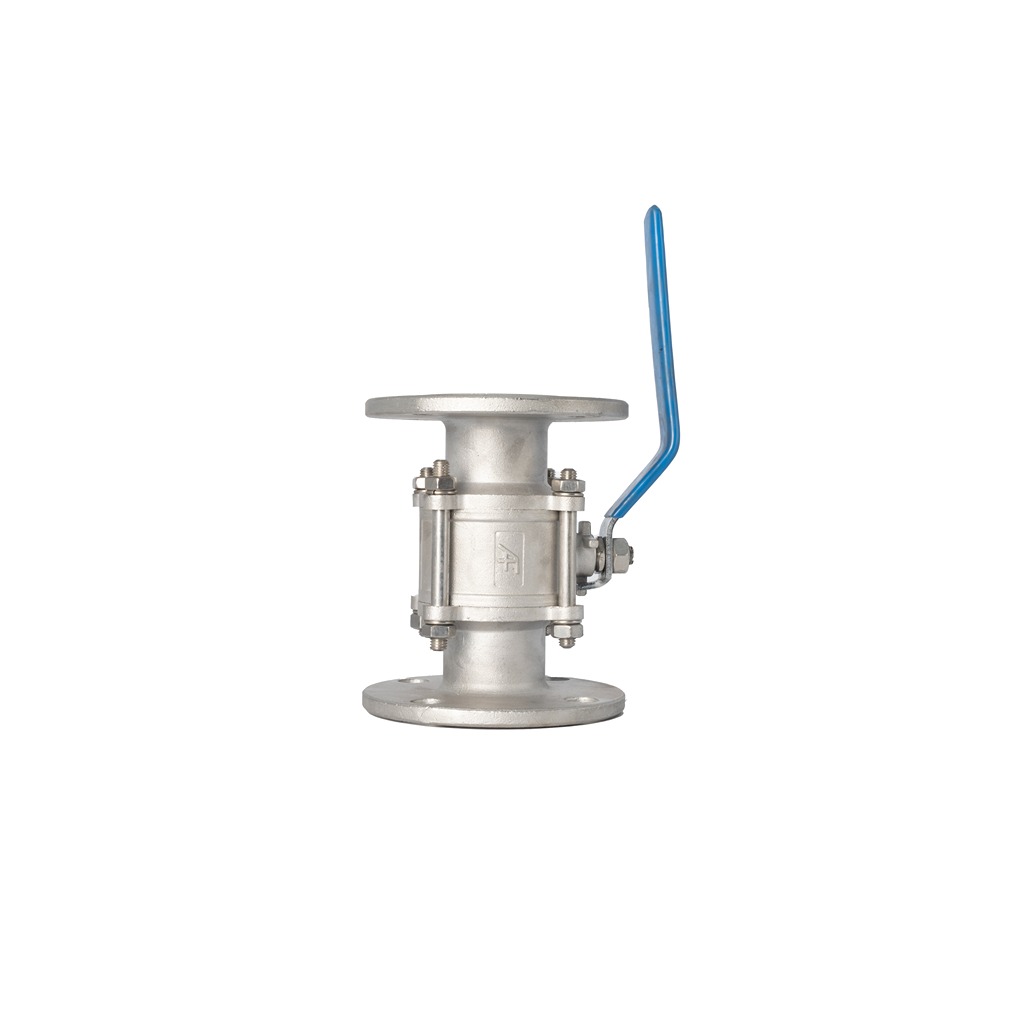

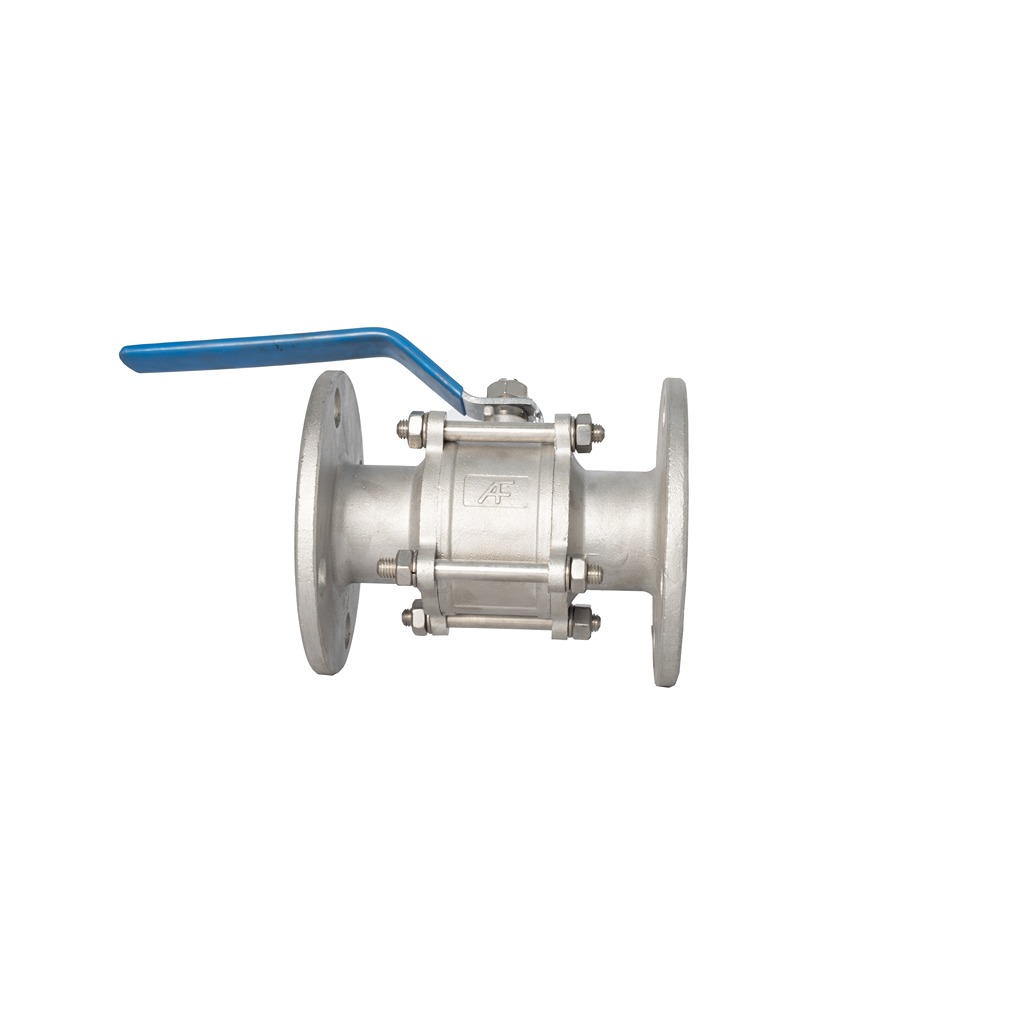

S.S. BALL VALVE FLANGED TYPE

Valves

Coating: RAW

Available Size: 1/2" - 6"

🔎 What It Is:

A Stainless Steel Ball Valve Flanged Type is a valve used to control or stop the flow of fluids in a piping system. It features a rotating ball with a bore inside, which aligns with the flow path when open and blocks it when closed. The flanged ends provide a secure and leak-proof bolted connection to pipes or equipment, making it easy to install and remove.

Enquiry For This Product

Specifications:

• Material

  Stainless Steel (commonly SS304, SS316, SS316L)

• Valve Type

  Ball Valve

• End Connection

  Flanged ends (ANSI B16.5 standard or equivalent)

• Size Range

  From ½” up to 24” or larger

• Pressure Ratings

  Class 150, 300, 600, or as per ASME/ANSI standards

• Operation

  Manual lever handle, gear-operated, or automated (pneumatic/electric actuators)

• Seal Material

  PTFE (Teflon), Reinforced PTFE, or other elastomers

• Ball Type

  Floating ball or Trunnion mounted

• Face to Face

  As per ASME B16.10

• Standards

  API 6D, ANSI, ASTM, ISO, or equivalent

• Temperature Range

  Typically -29°C to 200°C (varies based on materials used)

Features:

• Excellent corrosion resistance due to stainless steel construction
• Strong and reliable flanged connection for easy maintenance and installation
• Quick quarter-turn operation for efficient flow control
• Tight sealing with soft or metal seats ensures minimal leakage
• Suitable for on/off as well as throttling applications
• Low maintenance and long operational life
• Available with locking devices and anti-static features

Applications:

• Chemical and petrochemical industries
• Food and beverage processing
• Pharmaceutical manufacturing
• Water and wastewater treatment plants
• Oil and gas pipelines
• HVAC systems and fire protection
• General industrial fluid control
