MS ELBOW S/L-40

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 24"

🔎 What It Is:

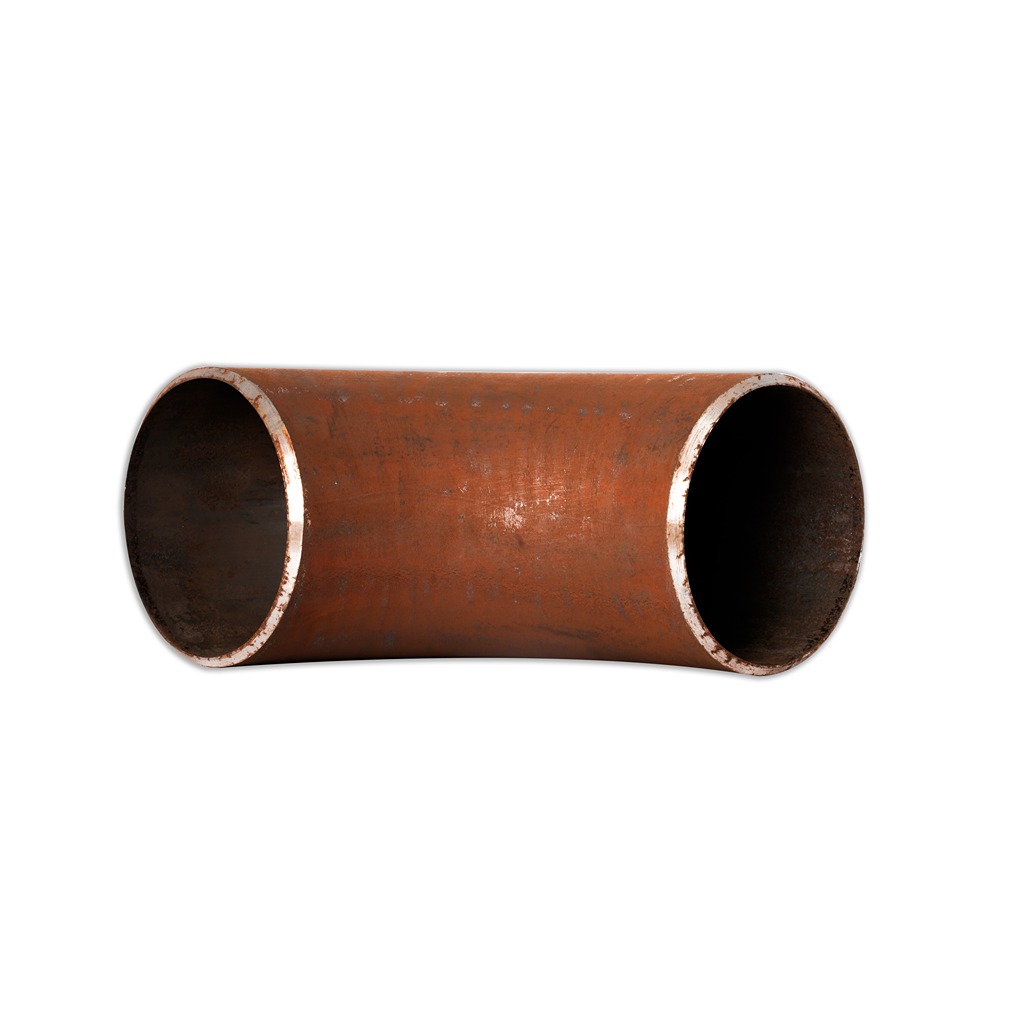

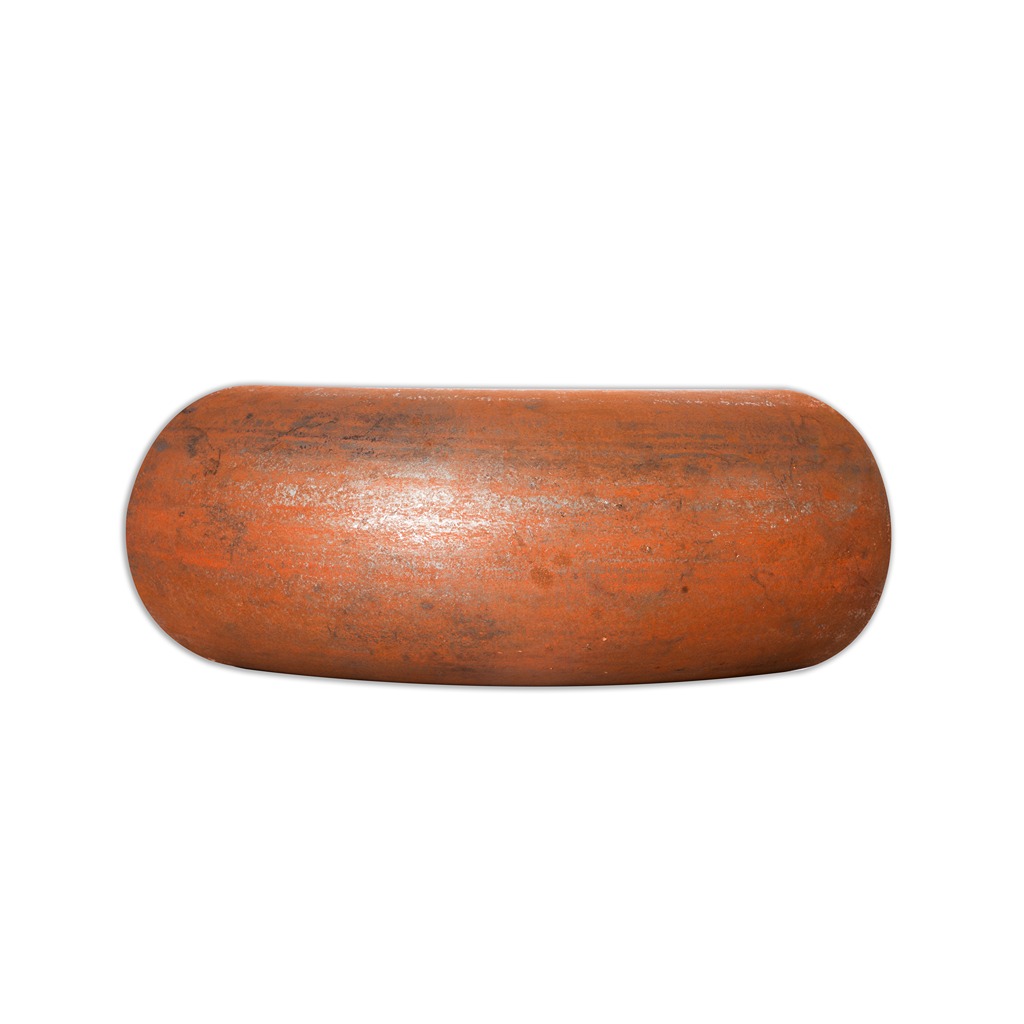

MS Elbow S/L-40 is a Mild Steel pipe elbow used to change the direction of flow in pipelines. The “S/L” indicates Short Radius (SR) or Long Radius (LR), and “40” refers to Schedule 40 wall thickness—commonly used for low to medium pressure applications. These elbows are either seamless or ERW welded and are ideal for general utility piping.

Enquiry For This Product

Specifications:

• Material

  Mild Steel (Low Carbon Steel)

• Type

  Butt Weld or ERW Elbow

• Wall Thickness

  Schedule 40 (Standard)

• Radius Type

  S = Short Radius (SR): Radius = 1 × Pipe Diameter

• Radius Type

  L = Long Radius (LR): Radius = 1.5 × Pipe Diameter

• Size Range

  ½" to 24"

• Angle Options

  45°, 90°, 180°

• Ends

  Beveled (for welding) or plain

• Standards

  IS 1239 / IS 3589 / ASME B16.9

• Surface Finish

  Black-painted, galvanized, or bare

Features:

• Good weldability and easy to fabricate
• Strong and durable for long service life
• Uniform thickness and accurate dimensions
• Cost-effective for general-purpose piping
• Available in both SR and LR based on installation needs
• Corrosion-resistant (with coating or galvanizing)

Applications:

• Plumbing and water supply pipelines
• Industrial air, gas, and oil pipelines
• Fire protection systems
• HVAC ducting and flow systems
• Agriculture irrigation and slurry lines
• Structural and fabrication work
