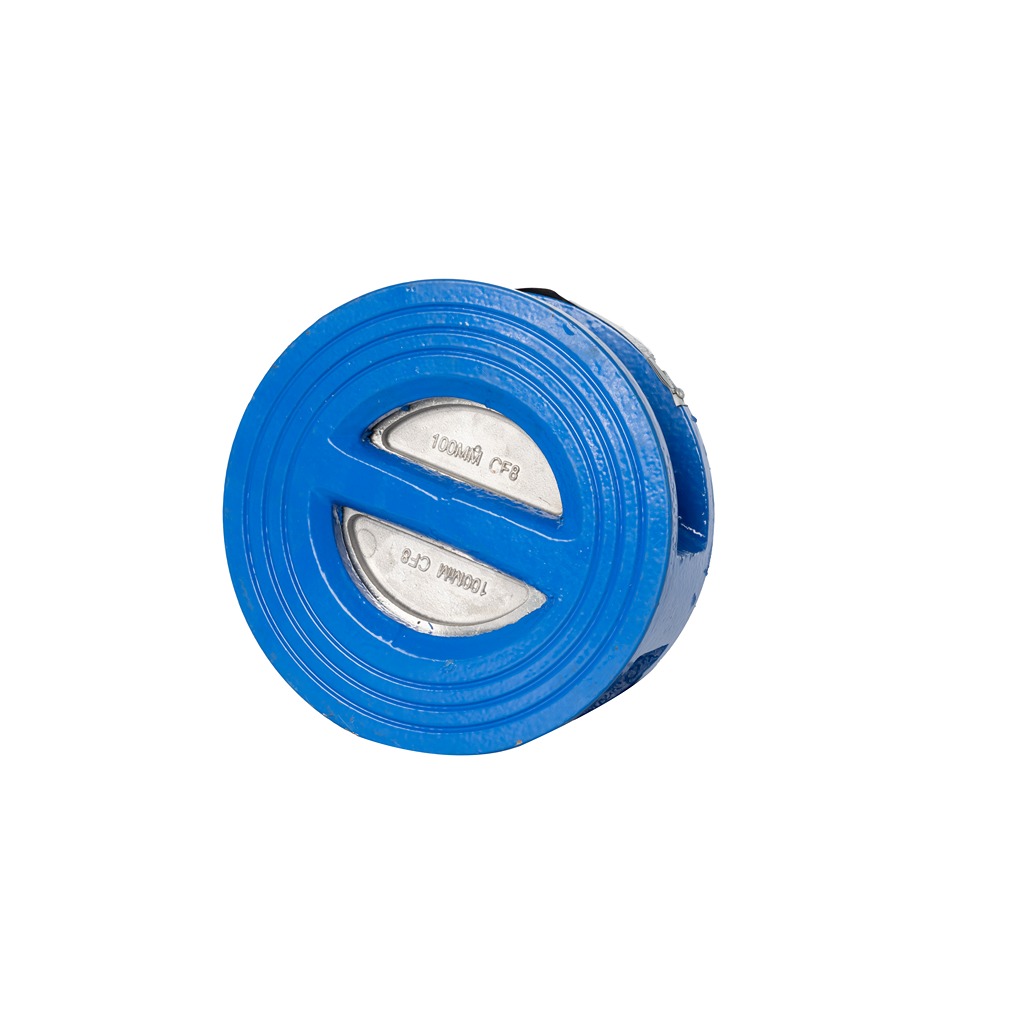

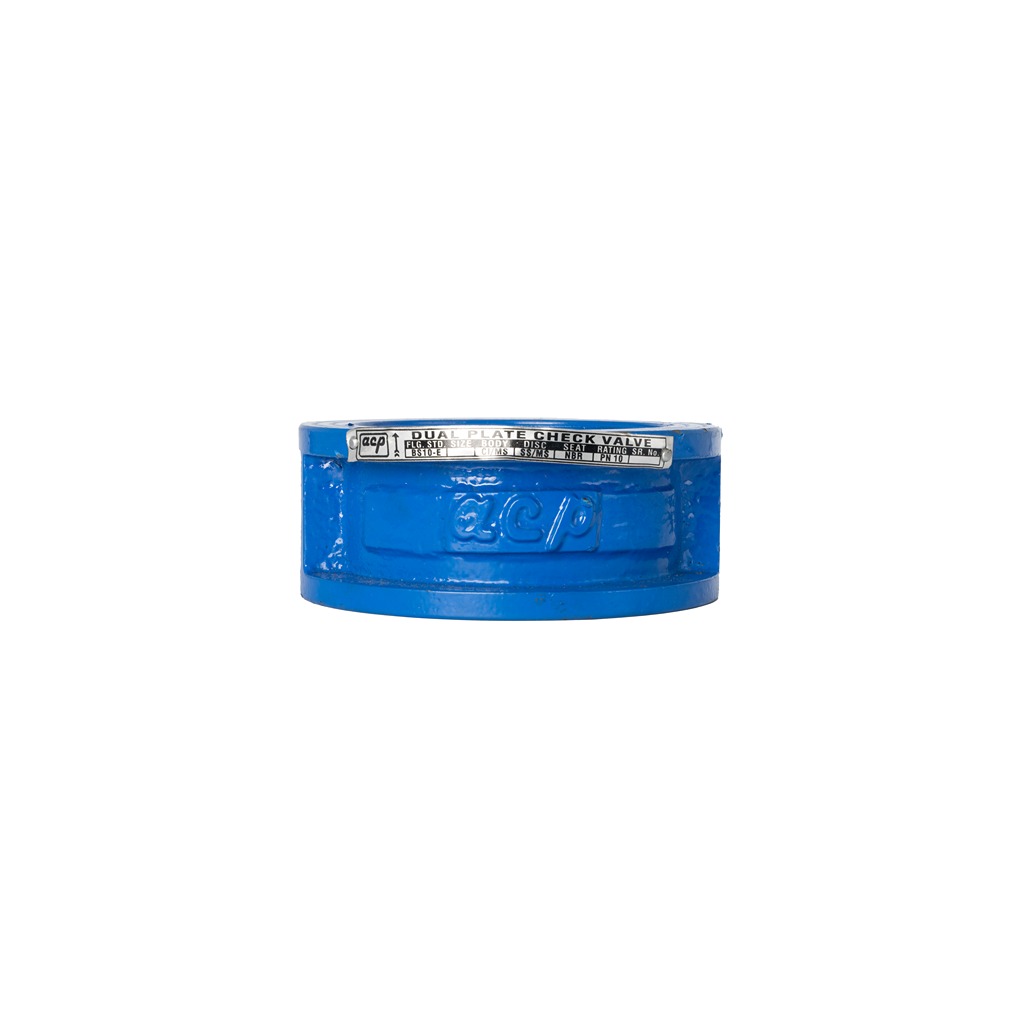

DUAL PLATE CHECK VALVE

Valves

Coating: RAW

Available Size: 1/2" - 12"

🔎 What It Is:

A Dual Plate Check Valve (also known as a double door or wafer check valve) is a type of non-return valve designed to allow fluid flow in one direction and prevent backflow. It features two spring-loaded plates (or discs) that swing open when fluid flows forward and close tightly when flow reverses, protecting pumps, compressors, and pipelines from damage.

Enquiry For This Product

Specifications:

• Material

  Carbon Steel, Stainless Steel (SS304, SS316), Alloy Steel, or other materials as required

• Design

  Wafer type, fitting between flanges without extending beyond pipe diameter

• Size Range

  Typically 2” to 48” or larger

• Pressure Rating

  ANSI Class 150, 300, 600, etc.

• End Connection

  Wafer style for installation between standard flanges

• Face to Face

  Compact wafer design (as per API 594 or equivalent)

• Seal Material

  Metal-to-metal or soft seat (PTFE, NBR, EPDM) options available

• Operation

  Spring-loaded plates for quick closing action

• Standards

  API 594, ASME B16.34, ANSI B16.5

Features:

• Compact and lightweight wafer design saves space and weight
• Quick and reliable closing reduces water hammer and pressure surges
• Dual plates ensure tight sealing and minimize leakage
• Suitable for bi-directional flow installation (in certain designs)
• Low pressure drop due to streamlined flow path
• Durable construction for long service life
• Easy to install between existing flanges

Applications:

• Pump discharge lines and compressors
• Water and wastewater treatment plants
• HVAC and fire protection systems
• Oil and gas pipelines
• Chemical and petrochemical processing
• Power plants and marine applications
