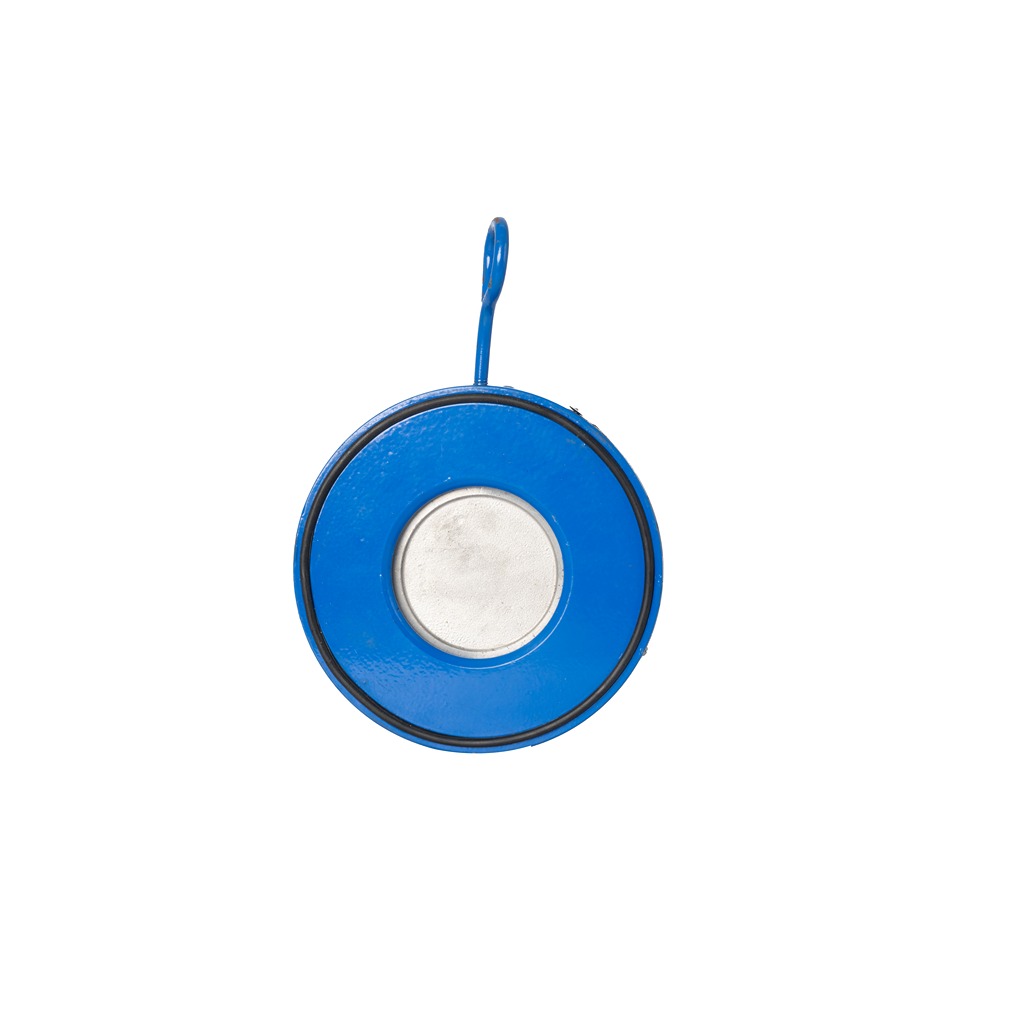

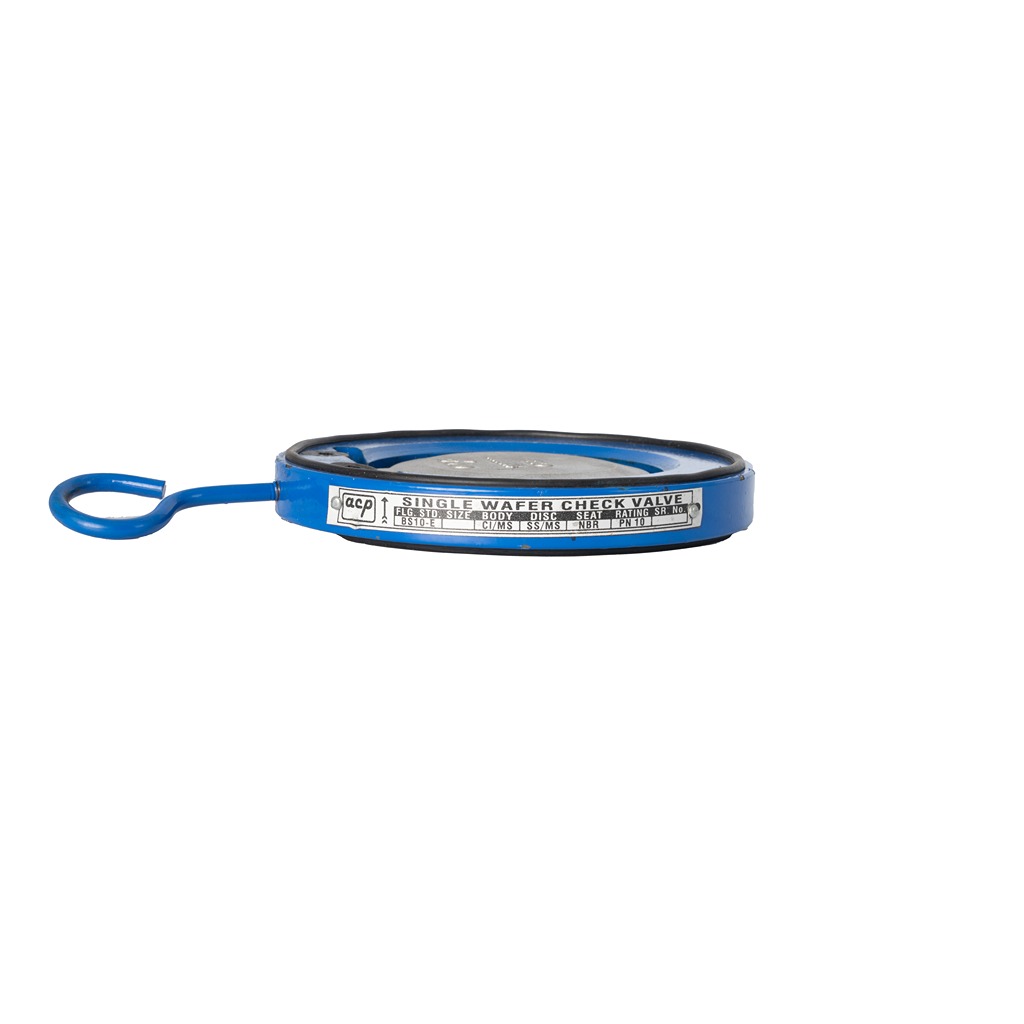

CHECK VALVE SINGLE WAFER TYPE

Valves

Coating: RAW

Available Size: 1/2" - 12"

🔎 What It Is:

A Single Wafer Check Valve is a compact, lightweight valve designed to prevent backflow in a piping system. It consists of a single disc or plate that swings open to allow flow in one direction and closes against a seat to block reverse flow. The wafer design allows it to fit snugly between two pipe flanges, minimizing space requirements.

Enquiry For This Product

Specifications:

• Material

  Carbon Steel, Stainless Steel (SS304, SS316), Alloy Steel, or other materials based on application

• Design

  Wafer type, thin and compact

• Size Range

  Typically 1½” to 48” or larger

• Pressure Rating

  ANSI Class 150, 300, 600, etc.

• End Connection

  Wafer style to fit between flanges

• Face to Face

  Compact design as per API 594 or equivalent standards

• Seal Material

  Metal-to-metal or soft seat options (PTFE, NBR, EPDM)

• Operation

  Swing check mechanism with a single disc

• Standards

  API 594, ASME B16.34, ANSI B16.5

Features:

• Compact and lightweight, saves space in pipeline installations
• Simple design ensures reliable operation
• Prevents backflow and protects pumps and equipment
• Suitable for horizontal and vertical installations
• Minimal pressure drop due to streamlined flow path
• Easy to install and maintain

Applications:

• Water and wastewater systems
• HVAC systems
• Chemical and petrochemical industries
• Oil and gas pipelines
• Power plants
• General industrial process lines
