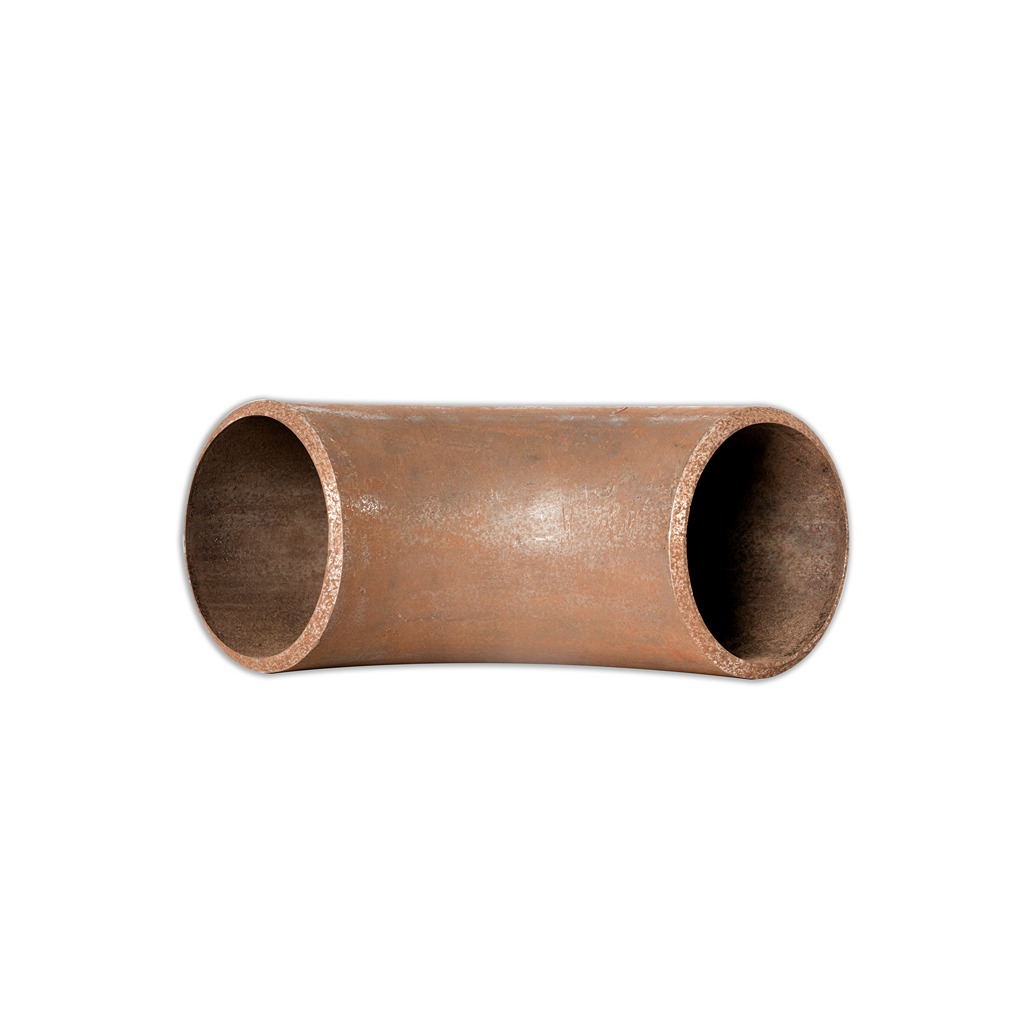

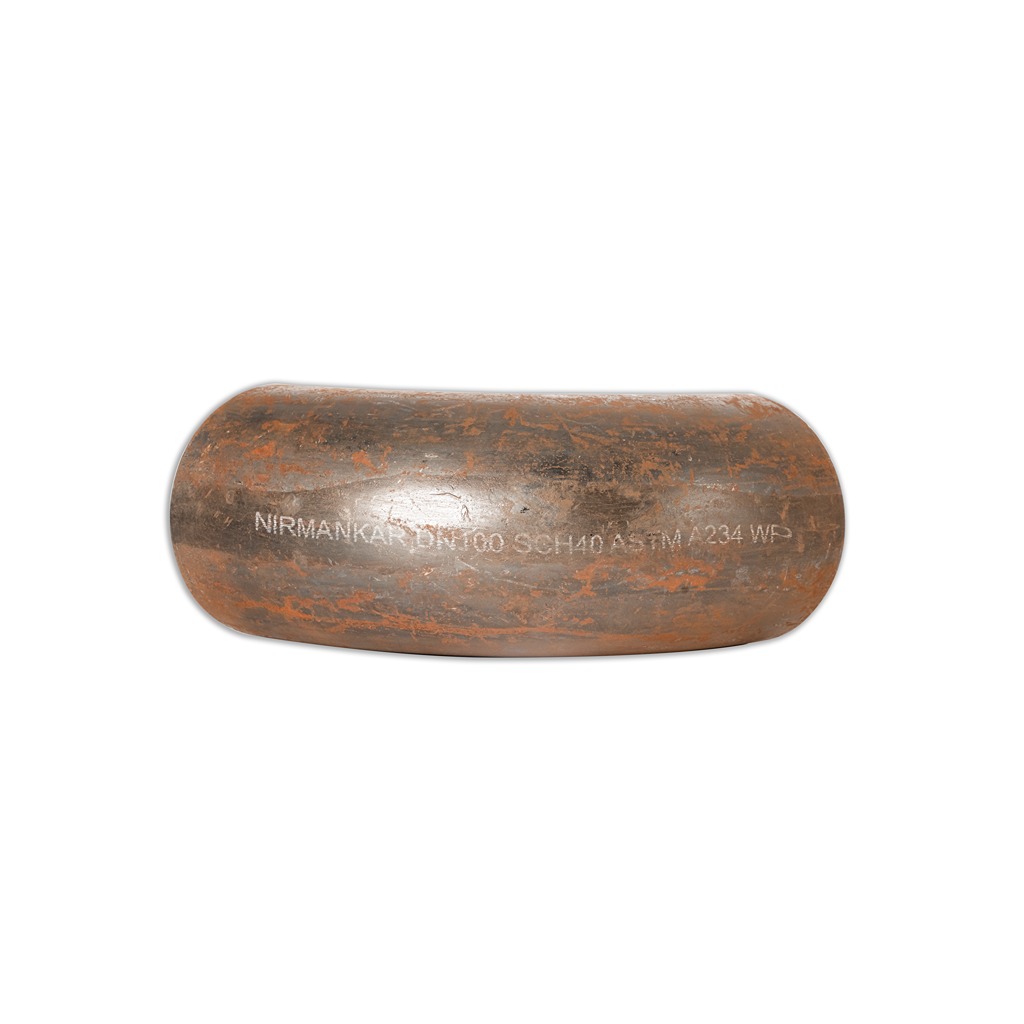

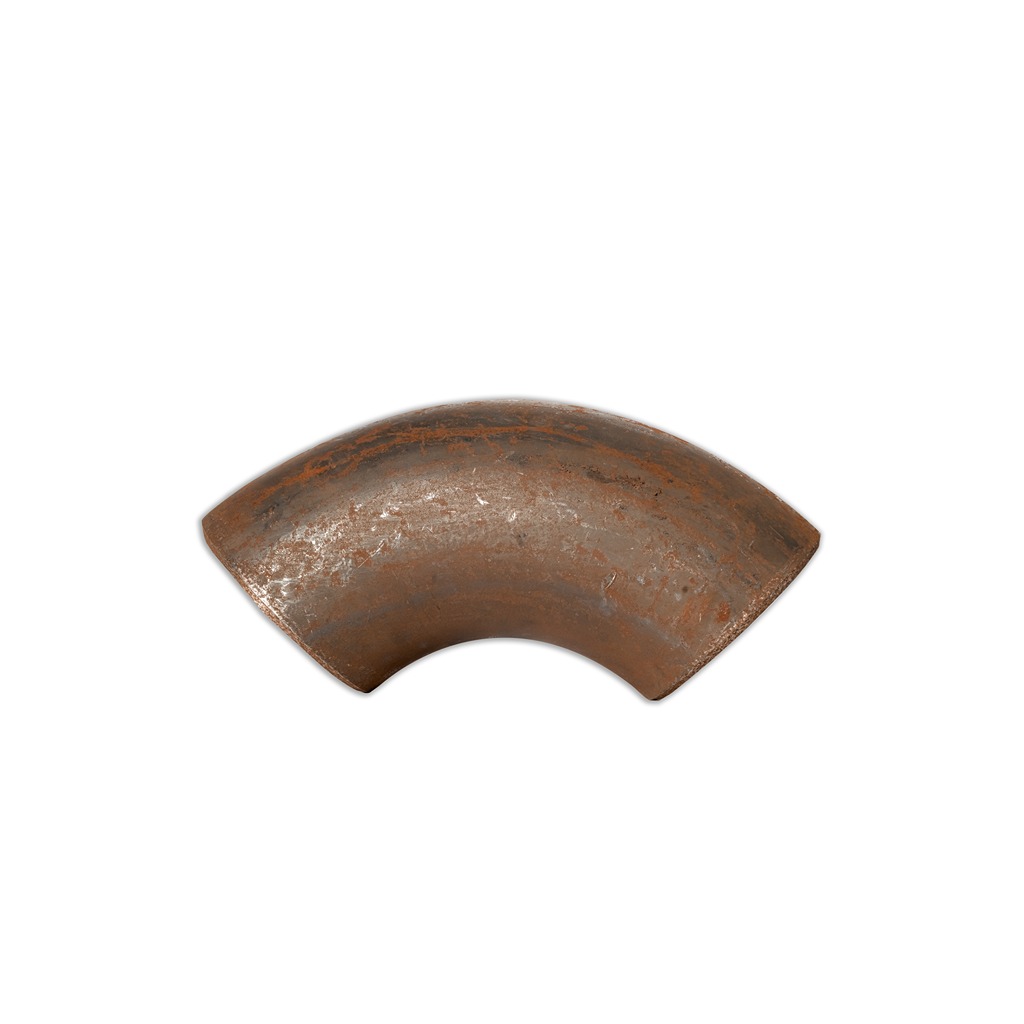

CARBON STEEL ELBOW SCH 40

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 24"

Carbon Steel Elbow SCH 40 refers to a pipe fitting made of carbon steel, designed to change the direction of flow in a piping system. Here’s a quick breakdown of the term:

🔩 What It Is:

Carbon Steel: A strong, durable metal commonly used in industrial piping.

Elbow: A pipe fitting that allows a change in direction—commonly 45° or 90°.

SCH 40 (Schedule 40): Refers to the wall thickness of the pipe. SCH 40 is a standard thickness, suitable for medium-pressure applications.
Material: Carbon Steel (commonly ASTM A234 WPB)

Enquiry For This Product

Specifications:

• Type

  Butt Weld Elbow

• Schedule

  SCH 40 (Standard wall thickness)

• Size Range

  ½" to 48" (DN15 to DN1200)

• Angles Available

  45°, 90°, 180°

• Radius Types

  Long Radius (LR): Radius = 1.5 × Nominal Diameter

• Radius Types

  Short Radius (SR): Radius = 1.0 × Nominal Diameter

• Standards

  ASME B16.9 / ANSI B16.28 / MSS SP-75

• End Type

  Beveled for welding (as per ASME B16.25)

• Surface Finish

  Black, anti-rust oiled, or painted

Features:

• High strength and pressure resistance
• Suitable for high-temperature applications
• Excellent weldability and toughness
• Long service life in harsh environments
• Available in seamless or welded construction
• Smooth internal surface for efficient flow
• Manufactured to international standards for accuracy

Applications:

• Oil & Gas pipelines
• Petrochemical plants
• Power generation stations
• Water distribution systems
• Refineries and chemical processing
• Shipbuilding and marine piping
• High-pressure steam and air systems
• Structural piping and fabrication
