BUTTWELDED U BEND

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 4"

🔎 What It Is:

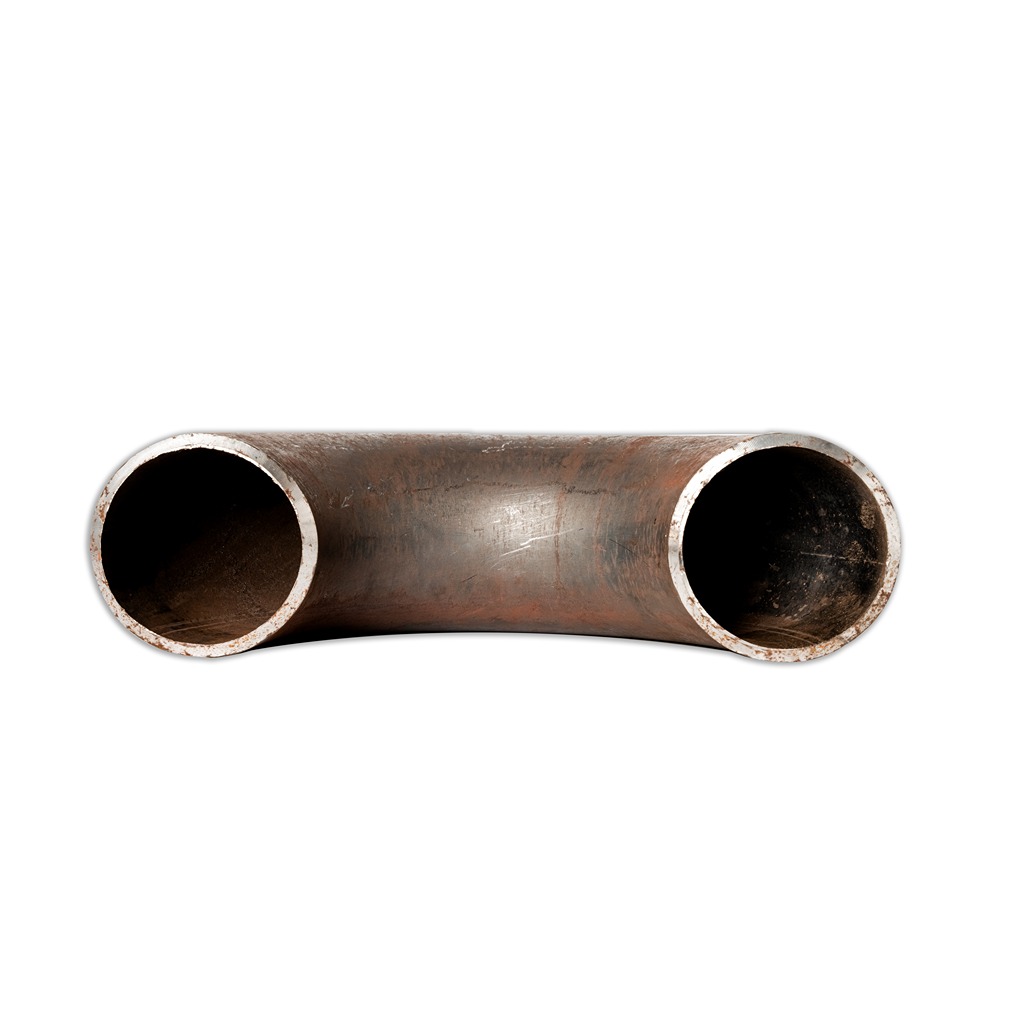

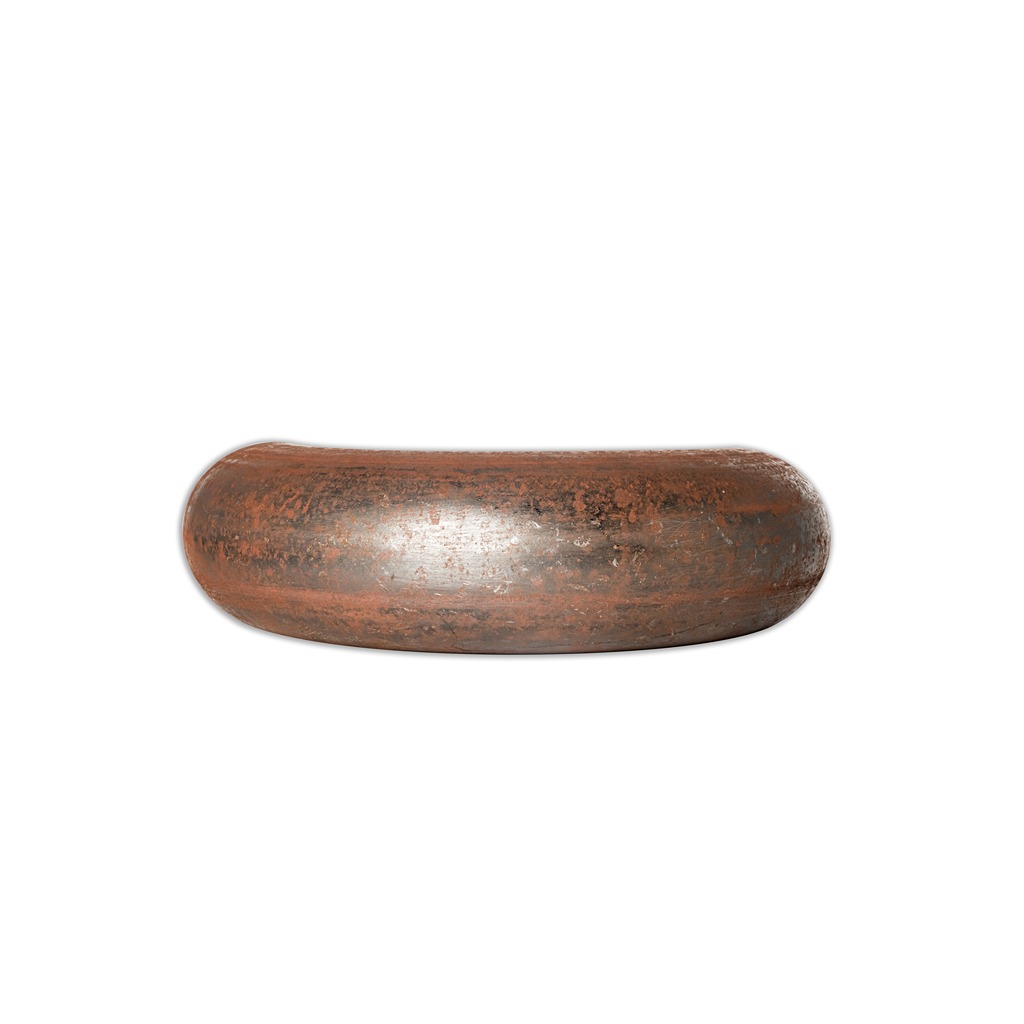

A Buttwelded U Bend is a pipe fitting shaped like the letter “U” designed to change the direction of flow by 180°. It is welded to pipes by butt welding and used where a complete reversal of flow direction is required in a compact space. U bends are preferred over multiple elbows to reduce pressure drop and turbulence.

Enquiry For This Product

Specifications:

• Type

  Buttwelded U Bend

• Material

  Carbon Steel (ASTM A234 WPB)

• Material

  Mild Steel (IS 1239 / IS 3589)

• Material

  Stainless Steel (ASTM A403 WP304/316)

• Size Range

  ½” to 24” (or custom sizes)

• Wall Thickness

  SCH 10, 20, 40, 80, or as per requirement

• Bend Radius

  Usually 1.5D (Long Radius) or customized as per application

• End Type

  Beveled ends for butt welding (ASME B16.25)

• Standards

  ASME B16.9 / IS 3589 / MSS SP-75

• Surface Finish

  Black painted, galvanized, or pickled

Features:

• Smooth flow with minimal pressure loss compared to multiple elbows
• Compact design suitable for tight spaces
• High mechanical strength and durability
• Easy to weld and install
• Manufactured to strict dimensional tolerances
• Available in seamless or welded versions

Applications:

• Heat exchangers and boiler piping systems
• Oil and gas industry pipelines
• Chemical and petrochemical plants
• Power generation and steam piping
• HVAC systems
• Water treatment plants
