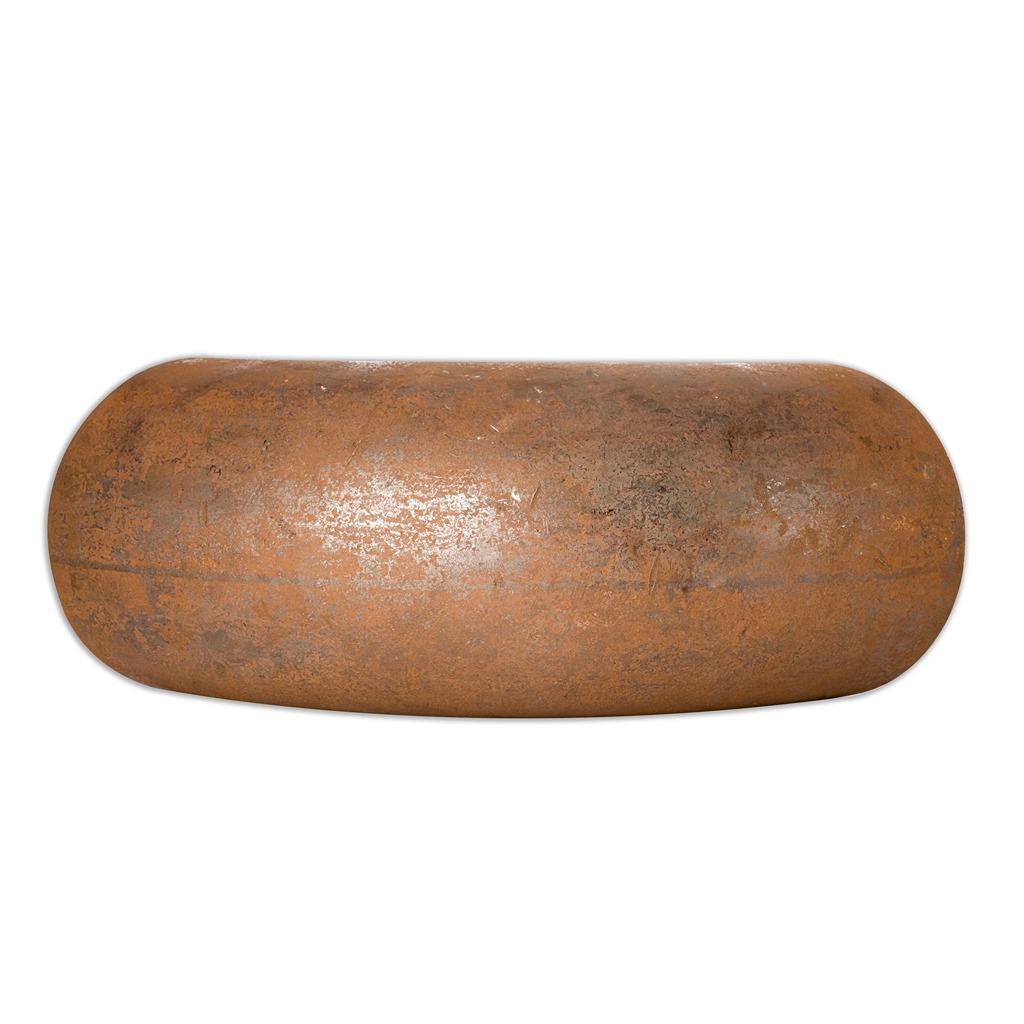

BUTTWELDED ELBOW

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 24"

🔎 What It Is:

A Buttwelded Elbow is a weldable pipe fitting used to change the direction of flow in a pipeline. These elbows are joined by butt welding to the ends of pipes and are commonly used in medium- to high-pressure systems. They come in various angles (like 45°, 90°, and 180°) and radius types.

Enquiry For This Product

Specifications:

• Type

  Buttwelded Elbow

• Material Options

  Carbon Steel (ASTM A234 WPB)

• Material Options

  Mild Steel (IS 1239 / IS 3589)

• Material Options

  Stainless Steel (ASTM A403 WP304 / WP316)

• Angle Options

  45°, 90°, 180°

• Radius Types

  Short Radius (SR): Radius = 1 × Nominal Diameter (1D)

• Radius Types

  Long Radius (LR): Radius = 1.5 × Nominal Diameter (1.5D)

• Size Range

  ½” to 48”

• Wall Thickness

  SCH 10, 20, 40, 80, 160, or custom

• End Type

  Beveled edges for butt welding (as per ASME B16.25)

• Standards

  ASME B16.9 / MSS SP-75 / IS 3589

• Surface Finish

  Black painted, galvanized, pickled, or bare

Features:

• High strength and pressure resistance
• Smooth inner surface minimizes pressure drop
• Leak-proof welded joint
• Long-lasting under mechanical and thermal stress
• Available in seamless or welded versions
• Dimensionally accurate and compliant with international standards

Applications:

• Oil & Gas pipelines
• Petrochemical and chemical processing plants
• Power generation and boiler systems
• Shipbuilding and offshore platforms
• Water treatment and distribution
• HVAC systems
• Food and pharmaceutical processing (in stainless steel)
