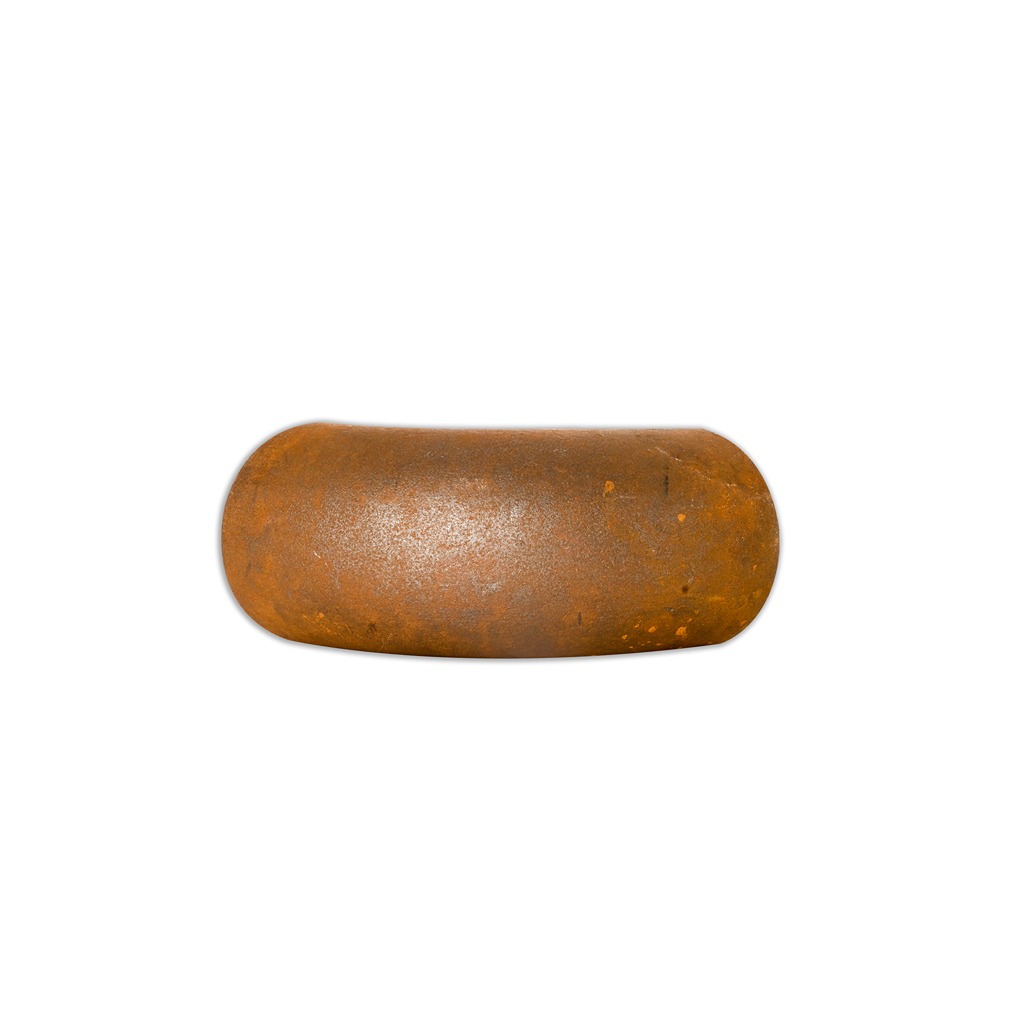

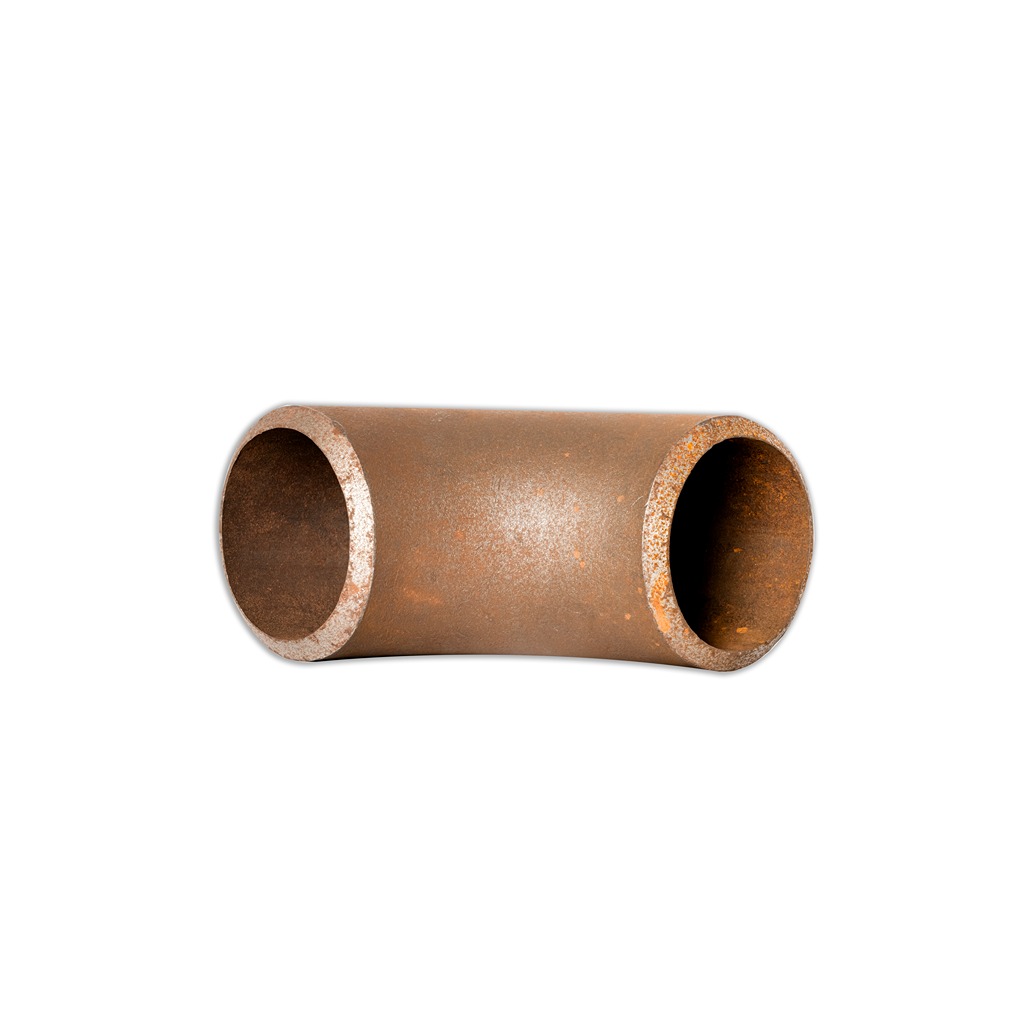

BUTTWELDED ELBOW S/L SCH 80

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 20"

🔎 What It Is:

Buttwelded Elbow S/L SCH 80 refers to a pipe elbow made from Schedule 80 (SCH 80) pipe and joined to the pipeline through butt welding. The “S/L” indicates Short Radius (SR) or Long Radius (LR), determining the curve’s radius. SCH 80 elbows are designed for high-pressure applications.

Enquiry For This Product

Specifications:

• Type

  Buttwelded Elbow

• Radius Options

  S = Short Radius (SR): Radius = 1.0 × Pipe Diameter

• Radius Options

  L = Long Radius (LR): Radius = 1.5 × Pipe Diameter

• Material

  Carbon Steel (ASTM A234 WPB)

• Material

  Mild Steel (for non-critical pressure lines)

• Size Range

  ½” to 24” (DN15 to DN600)

• Schedule

  SCH 80 (Thicker wall for higher pressure)

• Angle Options

  45°, 90°, 180°

• End Type

  Beveled for butt welding (ASME B16.25)

• Standards

  ASME B16.9 / IS 1239 / IS 3589 / MSS SP-75

• Finish

  Black painted, anti-rust coated, or galvanized

Features:

• Withstands higher pressure due to thicker wall
• Strong and durable weld joint
• Suitable for both elevated temperature and pressure systems
• Available in Short Radius and Long Radius for space or flow efficiency
• Smooth internal bore ensures efficient flow
• High mechanical strength and corrosion resistance (with coating)

Applications:

• High-pressure steam and gas pipelines
• Oil & Gas and petrochemical plants
• Chemical processing systems
• Thermal and nuclear power plants
• Fire protection and safety systems
• Water treatment plants
• Boiler and heat exchanger lines
