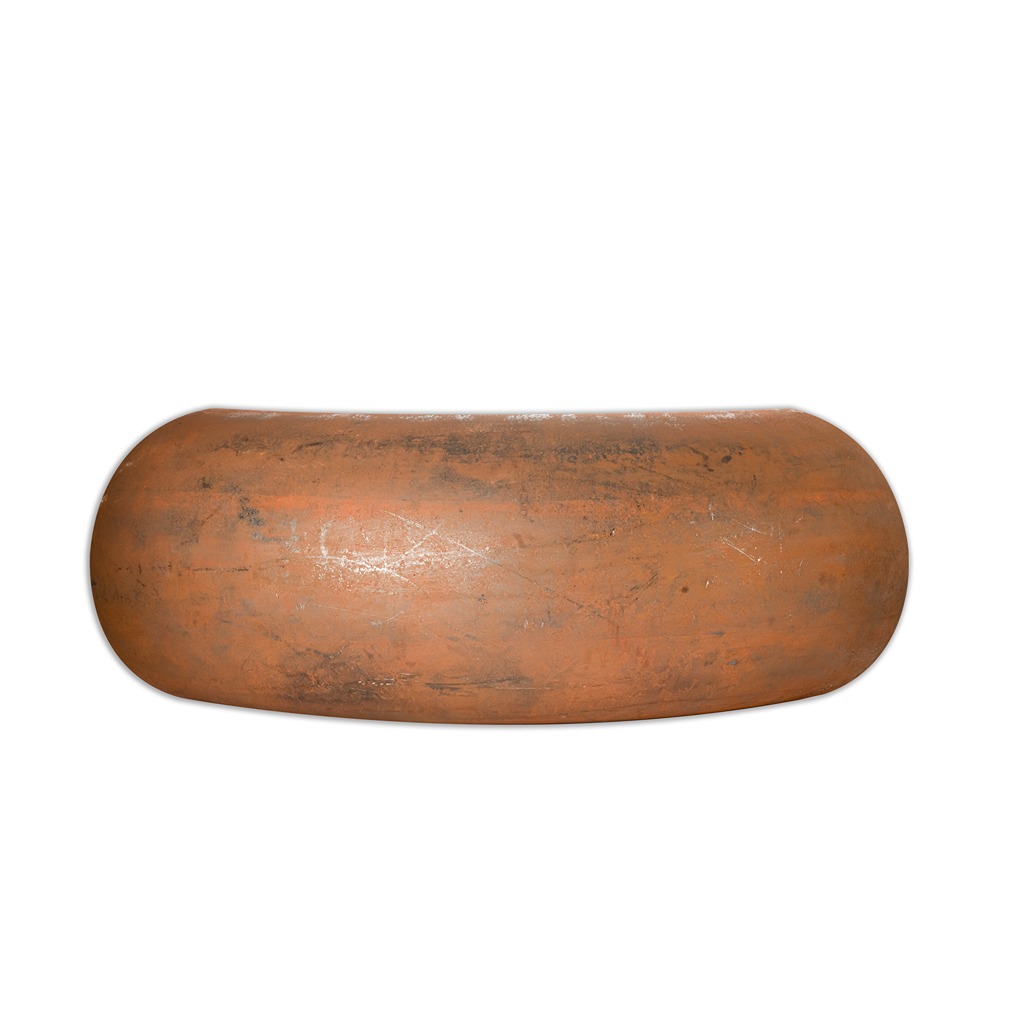

BUTTWELDED ELBOW E.R.W.

Industrial Pipe Fittings

Coating: G.I/BLACK PAINT/RAW/WARNISH

Available Size: 1/2" - 24"

🔎 What It Is:

Buttwelded Elbow E.R.W. refers to a pipe fitting made from Electric Resistance Welded (ERW) pipe and joined to pipelines via butt welding. These elbows are used to change the direction of flow (usually 45°, 90°, or 180°) and are commonly found in medium- to high-pressure applications.

Enquiry For This Product

Specifications:

• Type

  Buttwelded Elbow

• Material

  Carbon Steel or Mild Steel (typically ASTM A234 / IS 1239)

• Manufacturing Method

  ERW (Electric Resistance Welded)

• Size Range

  ½” to 24” (or as required)

• Angle Options

  45°, 90°, 180°

• Radius Options

  Long Radius (LR) – Radius = 1.5 × Nominal Pipe Size

• Radius Options

  Short Radius (SR) – Radius = 1.0 × Nominal Pipe Size

• Wall Thickness

  Schedule 10 / 20 / 40 / 80, or custom

• End Type

  Beveled for butt welding (per ASME B16.25)

• Standards

  ASME B16.9 / IS 1239 / IS 3589 / MSS SP-75

• Surface Finish

  Black painted, anti-corrosion oil-coated, or galvanized

Features:

• Smooth interior ensures minimal pressure drop
• High dimensional accuracy
• Strong and leak-proof joint when welded
• Cost-effective alternative to seamless fittings
• Easy to install and weld
• Durable under mechanical and thermal stress

Applications:

• Oil & Gas pipelines
• Firefighting systems
• Chemical and process industries
• Water supply and treatment plants
• Power generation and boiler lines
• HVAC piping and ductwork
• Agricultural and slurry handling systems
